CAR SERIES
Item Main specification
Resistance of the sensor winding 120±80Ω
Output signal value Vp-p≥750 mv
Testing frequency 50 Hz
Testing air gap 1 mm
Operating temperature range -40~+110 ℃
(+125℃ 1 hour)
TRUCK SERIES
Item Main specification
Resistance of the sensor winding 150±10/-50Ω
Output signal value Vp-p≥600 mv
Testing frequency 100 Hz
Testing air gap 1 mm
Operating temperature range -40~+150 ℃
（+180℃ 1 hour)

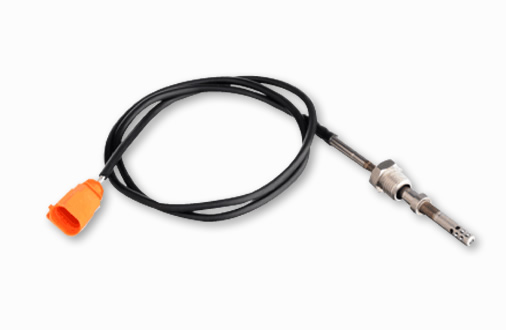

EXHAUST GAS TEMPERATURE SENSOR
Item Main specification
chip high precision PT200
steel tube incoloy type stainless steel
temperature range -40℃ +850 ℃
standard accord with Rohs requirement
application EGR(exhaust gas recirculation)
SCR(selective catalytic reduction)
DPF(die sel particulate filter)
DOC(diesel oxidation catalytic system)
AOC(ammonia oxidation catalytic system)
